Our Machinery

A precision engineering workshop, well equipped.

Modern CNC milling and turning centres, precision manual machining and coordinate measuring inspection — all under one roof in Royston.

Smec SL2000
CNC Turning

Smec SL2000

Production CNC turning centre — our workhorse for bar-fed and chucked turned components in stainless, brass and engineering plastics.

Specification
Swing over bed
570 mm
Swing over cross slide
460 mm
Max machining diameter
360 mm
Max machining length
540 / 520 mm
Max bar capacity
68 mm
Typical applications
Shafts, bushes, fittings and precision turned components — prototype through repeat production.

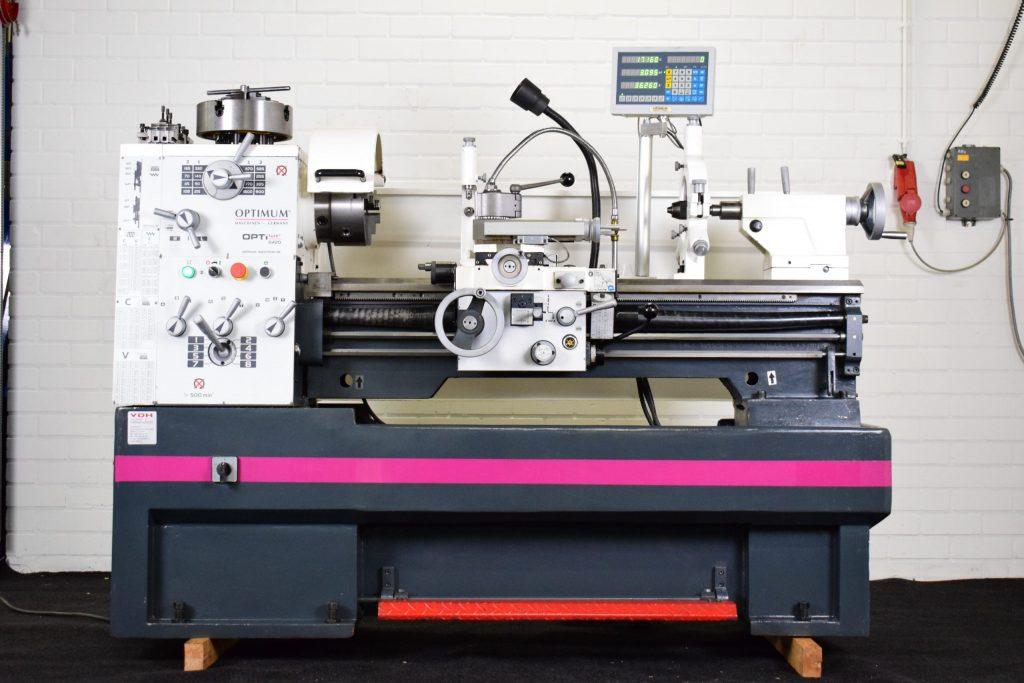

Optimum Opti Turn D420
Manual

Optimum Opti Turn D420

Versatile manual lathe for medium-diameter turned parts, one-offs and short-run production where flexibility matters.

Specification
Swing over bed
420 mm
Swing over cross slide
250 mm
Max machining diameter
420 mm
Max bar capacity
52 mm
Typical applications
Medium-diameter turned parts, prototypes and short-run production.

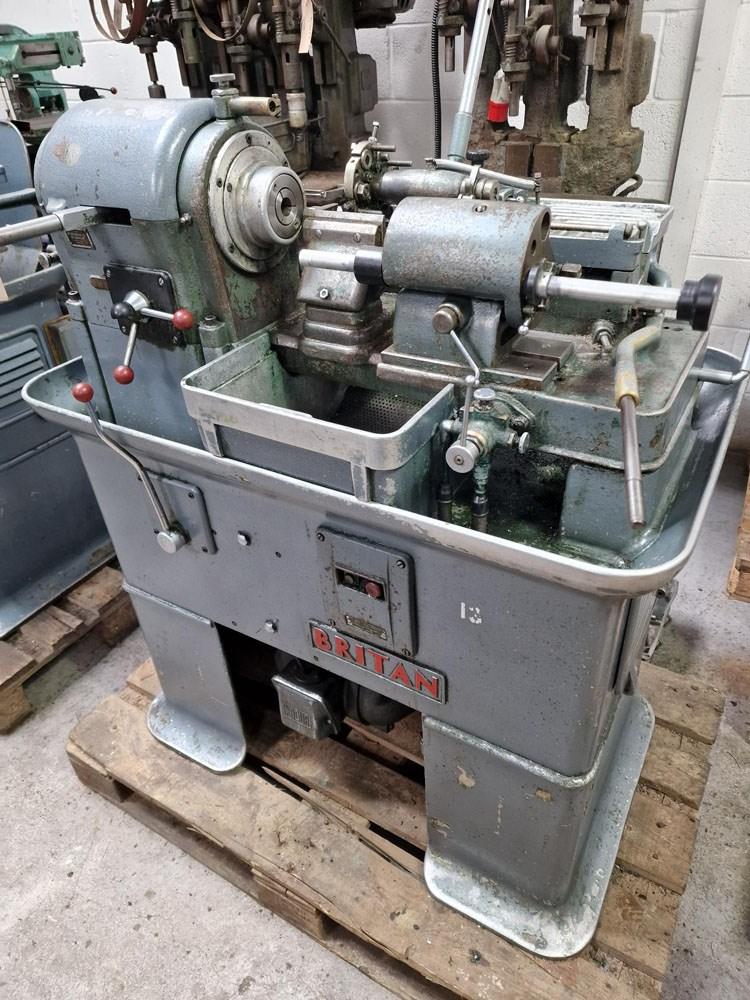

Britan Repetition Lathe
Manual

Britan Repetition Lathe

Classic repetition lathe for small, high-volume turned parts and rapid one-offs where a manual set-up beats a CNC programme.

Specification
X travel
32 mm
Z travel
100 mm
Typical applications
Small-part repetition work, pins, ferrules and rapid one-offs.
Dugard 1000 VMC
CNC Milling

Dugard 1000 VMC

Our largest vertical machining centre — used for oversized plates, mounting frames and long components in a single set-up.

Specification
X travel
1050 mm
Y travel
540 mm
Z travel
560 mm
Typical applications
Larger plates, frames and multi-feature prismatic parts.
Haas Super Mini Mill 2
CNC Milling

Haas Super Mini Mill 2

Compact, high-speed 3-axis vertical machining centre — ideal for precision components in aluminium, stainless and engineering plastics.

Specification
X travel
508 mm
Y travel
406 mm
Z travel
356 mm
Typical applications
Small to medium prismatic parts, housings, brackets and instrument components.

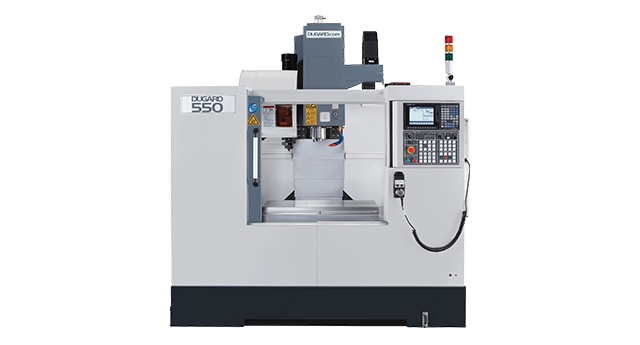

Dugard 550 VMC
CNC Milling

Dugard 550 VMC

Mid-envelope VMC used across a broad range of precision milled components — prototypes through batch production.

Specification
X travel
550 mm
Y travel
440 mm
Z travel
460 mm
Typical applications
Prototype and batch production of prismatic components.

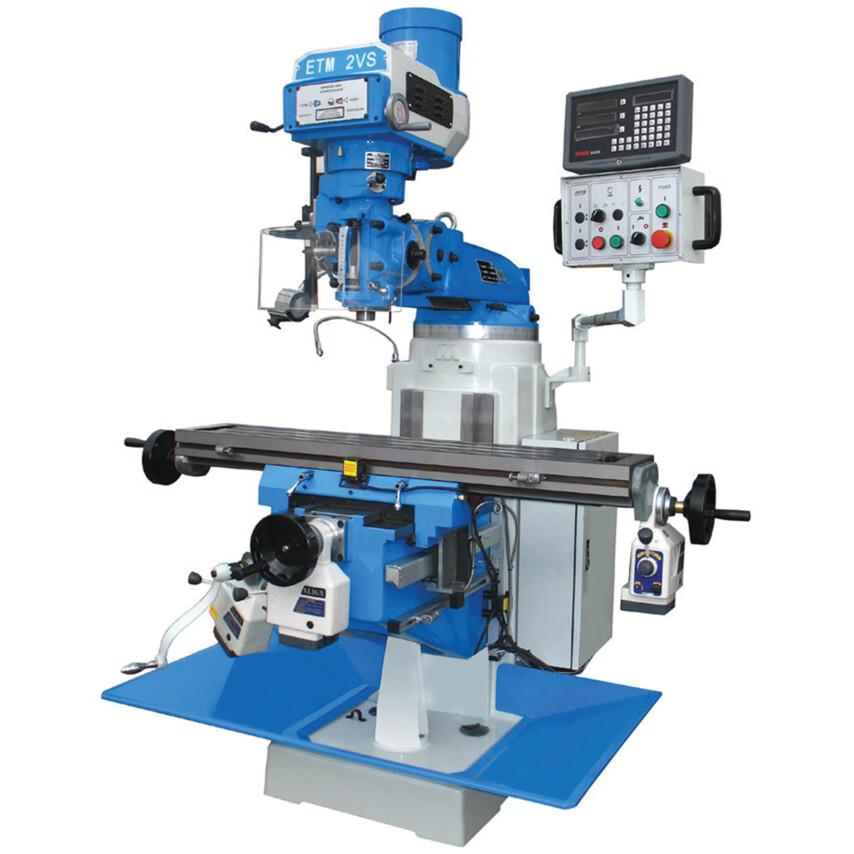

Excel ETM2VS Turret Mill
Manual

Excel ETM2VS Turret Mill

Versatile turret milling machine for one-offs, modifications and fixture work where a manual set-up is the faster route.

Specification
X travel
690 mm
Y travel
270 mm
Z travel
390 mm
Typical applications
One-offs, jigs, fixtures and rapid modifications.
ZEISS DuraMax CMM
Inspection

ZEISS DuraMax CMM

Shop-floor coordinate measuring machine built for the production environment. Combines robustness, precision and efficiency — unaffected by harsh conditions or high temperatures. Paired with the ZEISS VAST XXT sensor for fast single-point measurement and scanning of contours and free-form surfaces, replacing the need for fixed gauges.

Specification
Type
Bridge-type CMM
Sensor
ZEISS VAST XXT (scanning)
Environment
At-line, production hall
Capability
Contours & free-form surfaces
Typical applications
At-line dimensional verification of turned and milled components — first-off, in-process and final inspection direct on the shop floor.
